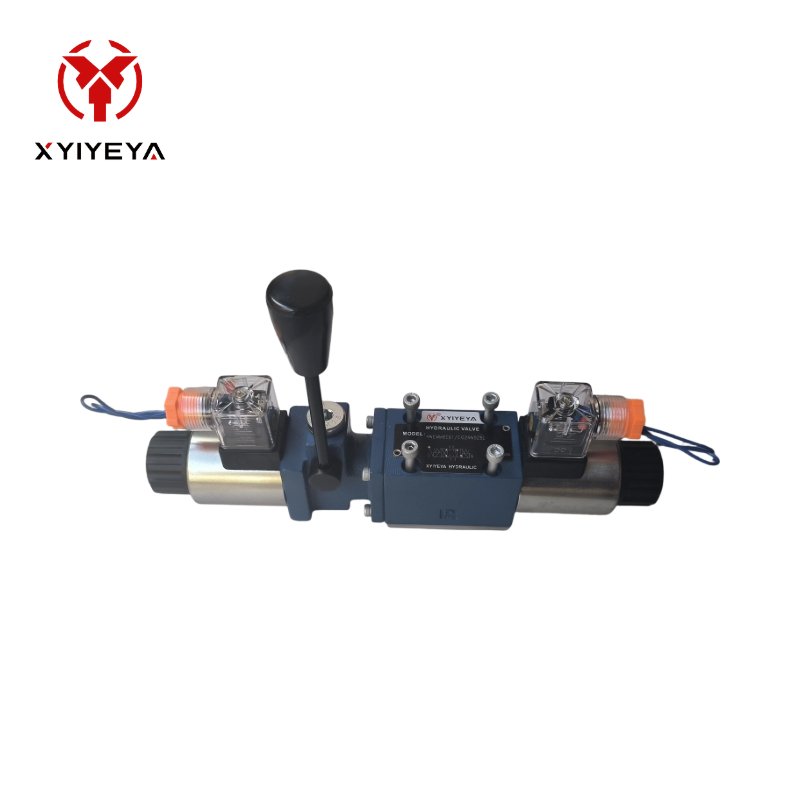

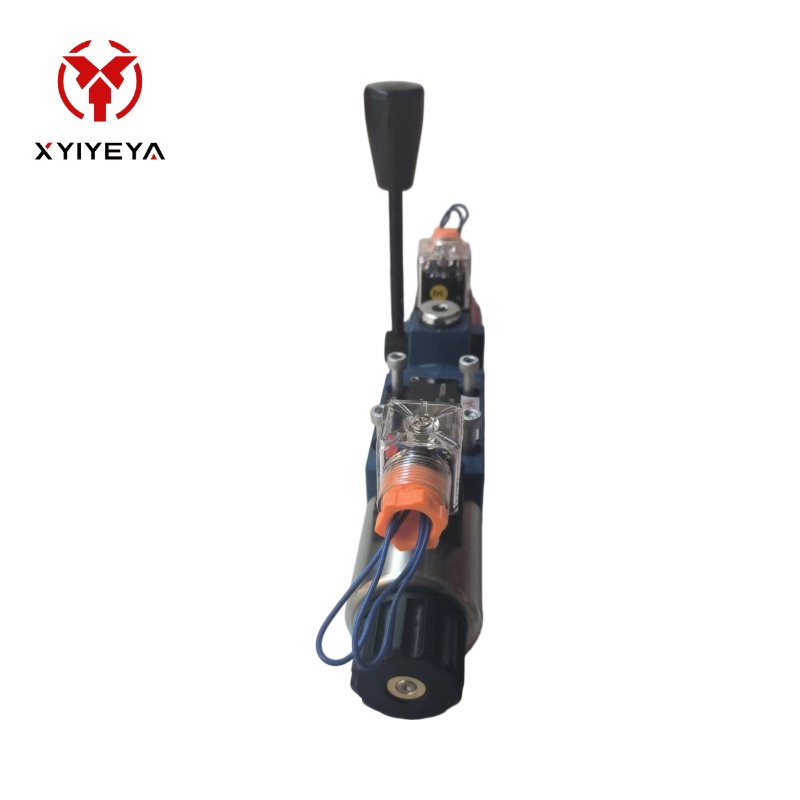

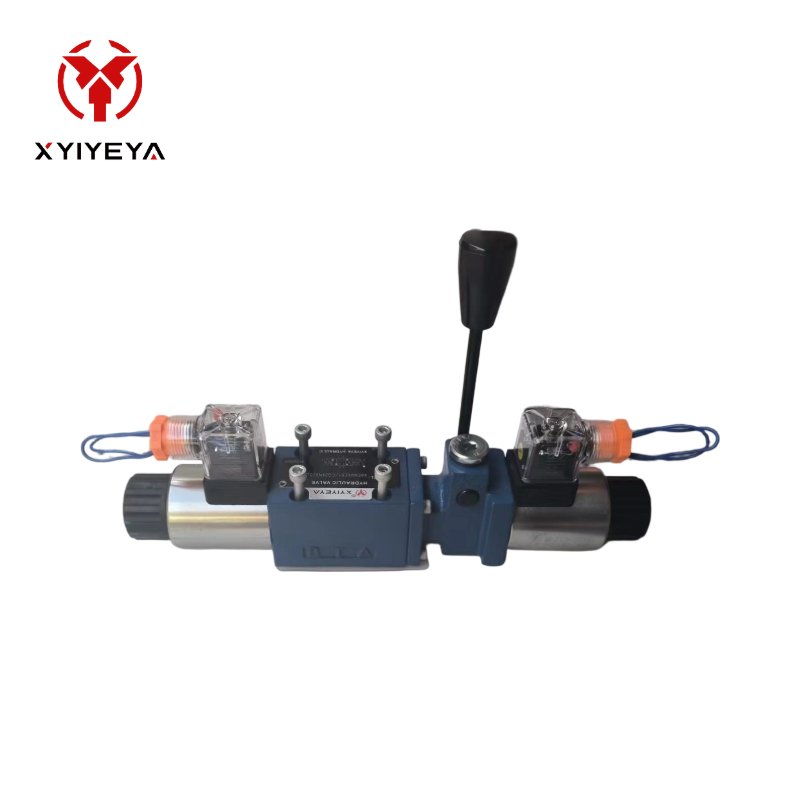

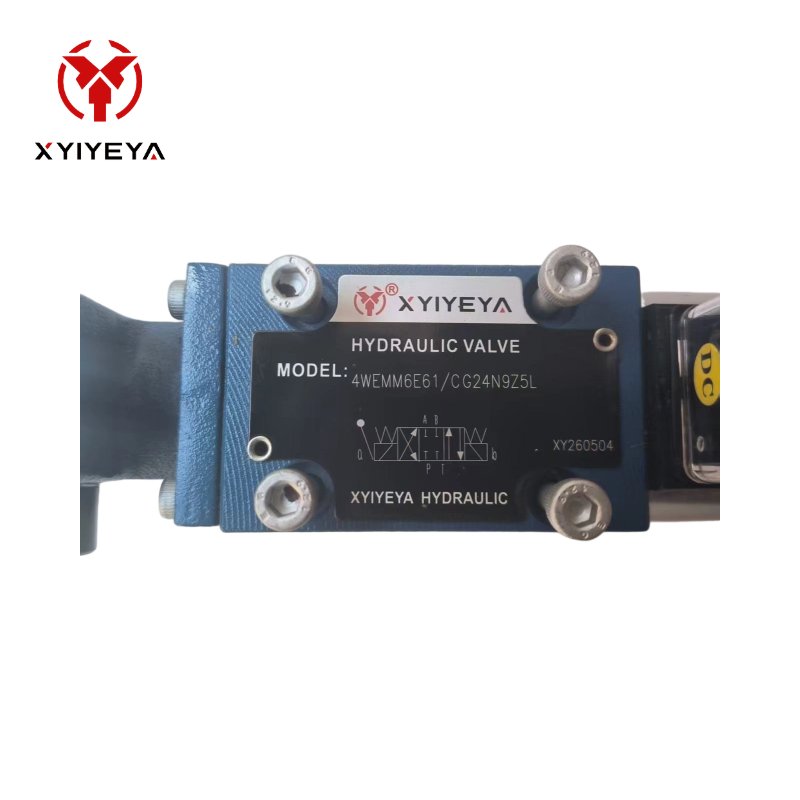

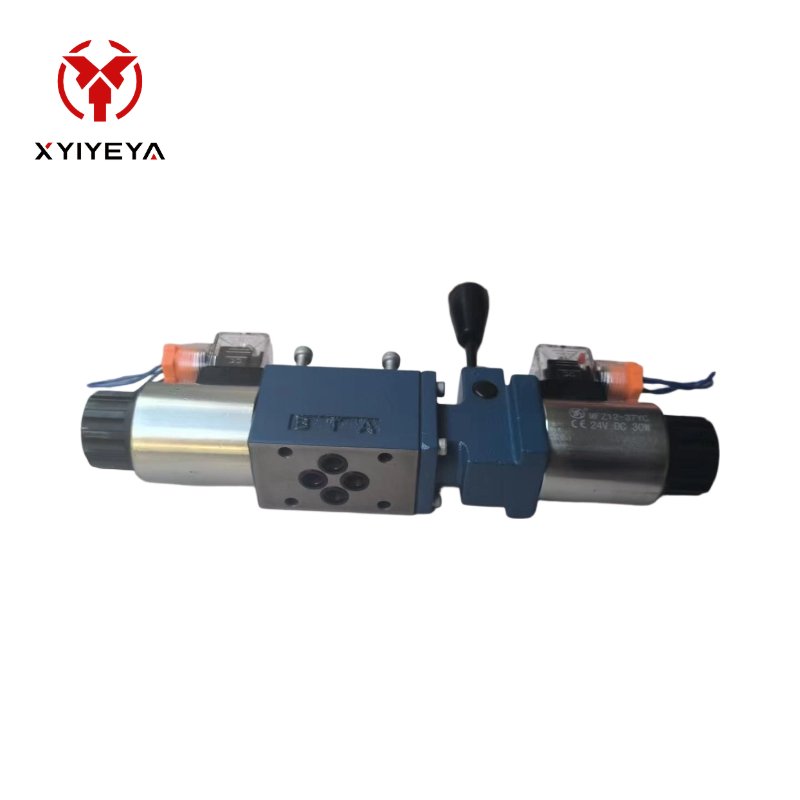

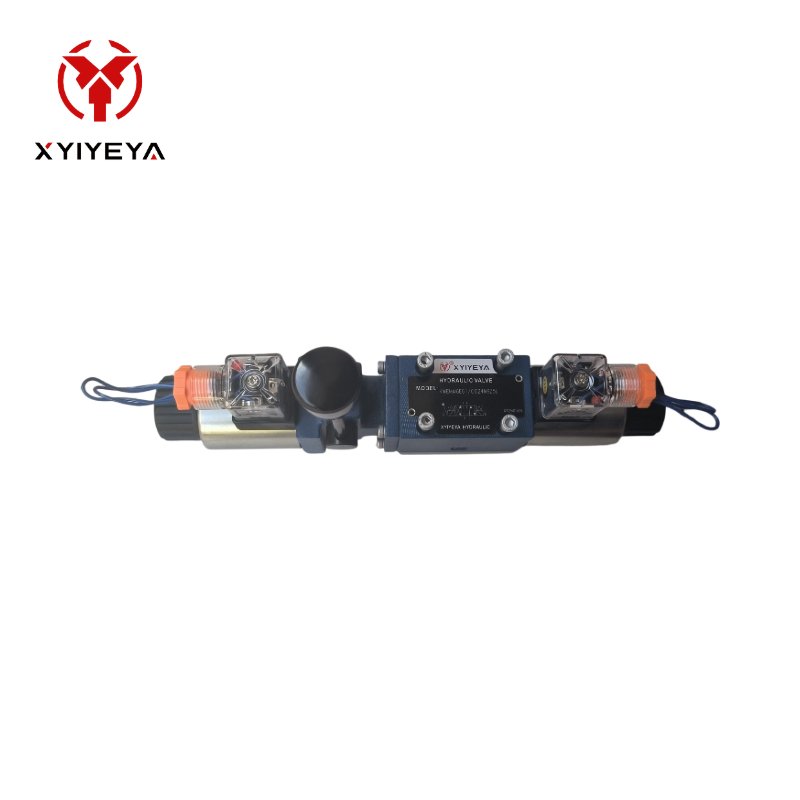

4WEMM6E61/CG24N9Z5L Solenoid Operated Directional Valve
4WEMM6E61/CG24N9Z5L Solenoid Operated Directional Valve is a high-performance hydraulic valve designed to control the start, stop, and direction of fluid flow. Equipped with a solenoid actuator and manual override, it ensures precise, flexible, and reliable operation in industrial hydraulic systems.
| Model | 4WEMM6E61/CG24N9Z5L |
|---|---|
| Viscosity | 2.5 to 500 mm²/s |
| Temperature | -30 to +80 ℃ |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Technical Data | ||
| Operating pressure | (MPa) | Ports A,B,Pup to 35 |
| Tank port pressure | (MPa) | up to 16(AC)up to 21(DC) |
| Fluid | Mineral hydraulic oil or phosphate ester hydraulic oil | |
| Viscosity range | (mm²/s) | 2.5 to 500 |
| Temperature range | (℃) | -30 to +80 |
Model code
Function Symbols
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
