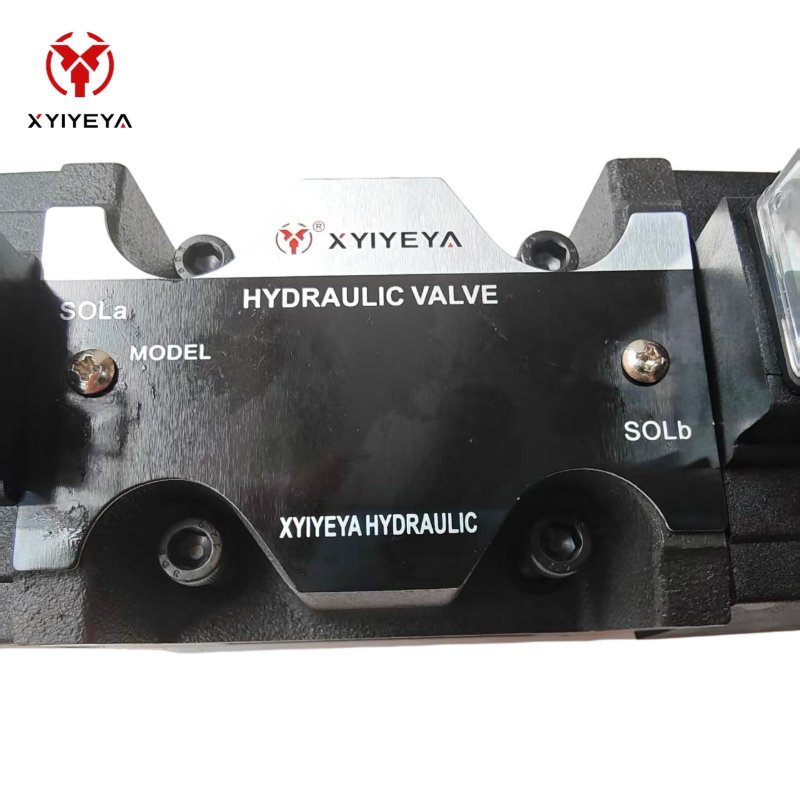

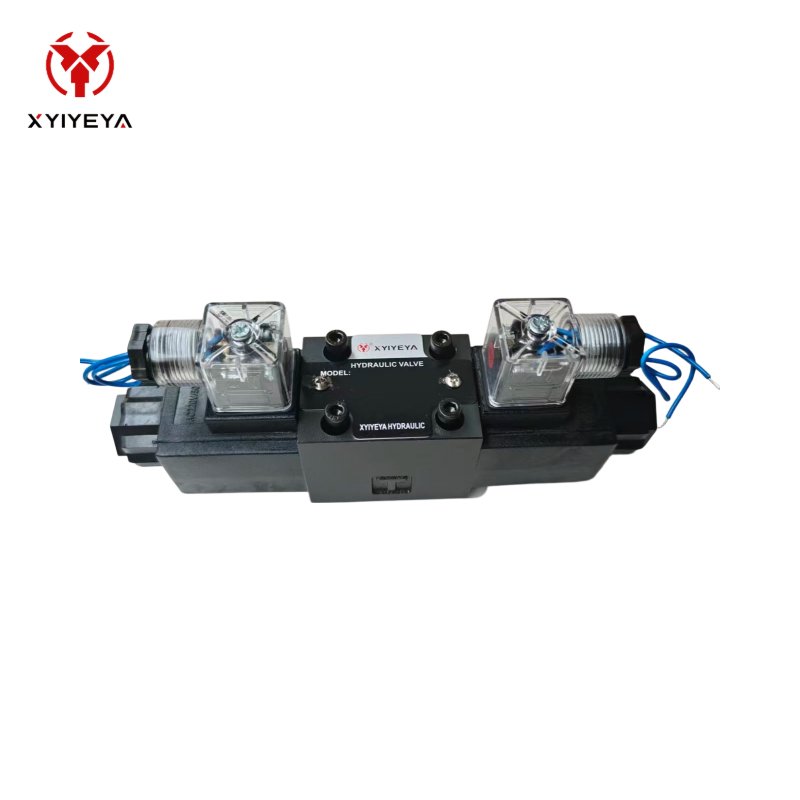

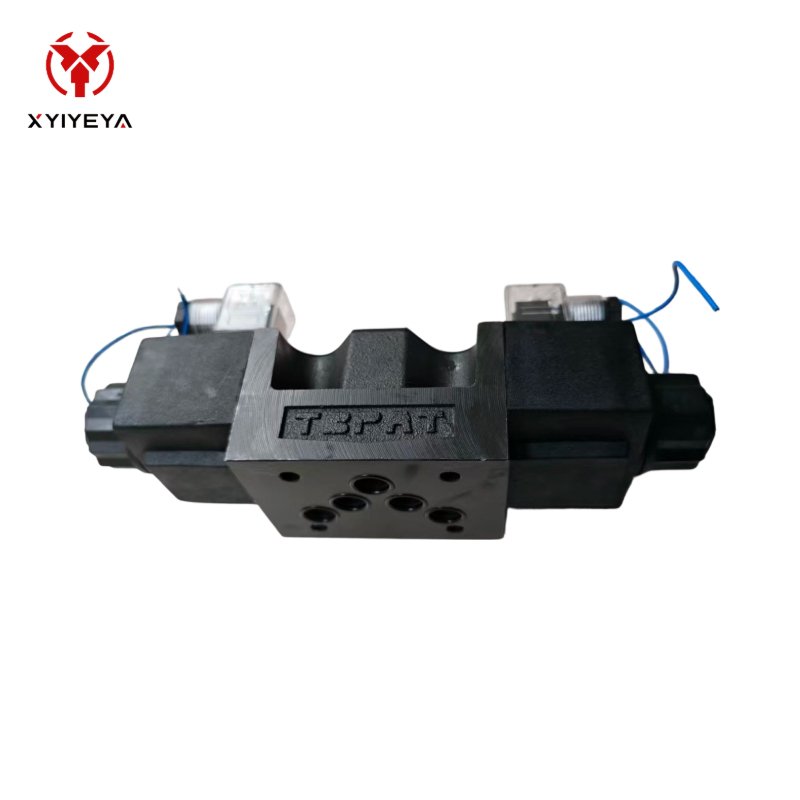

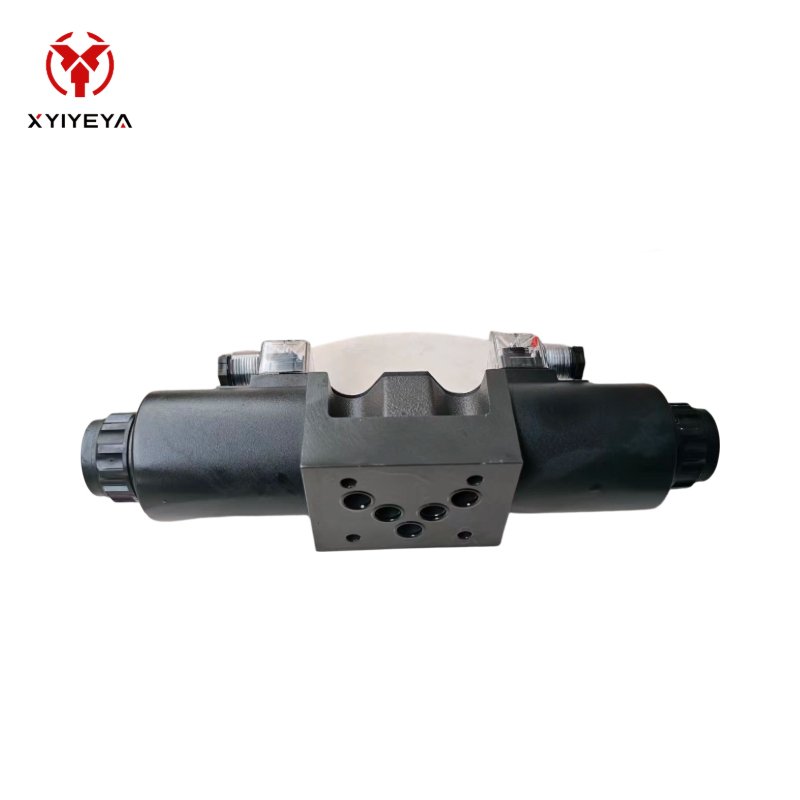

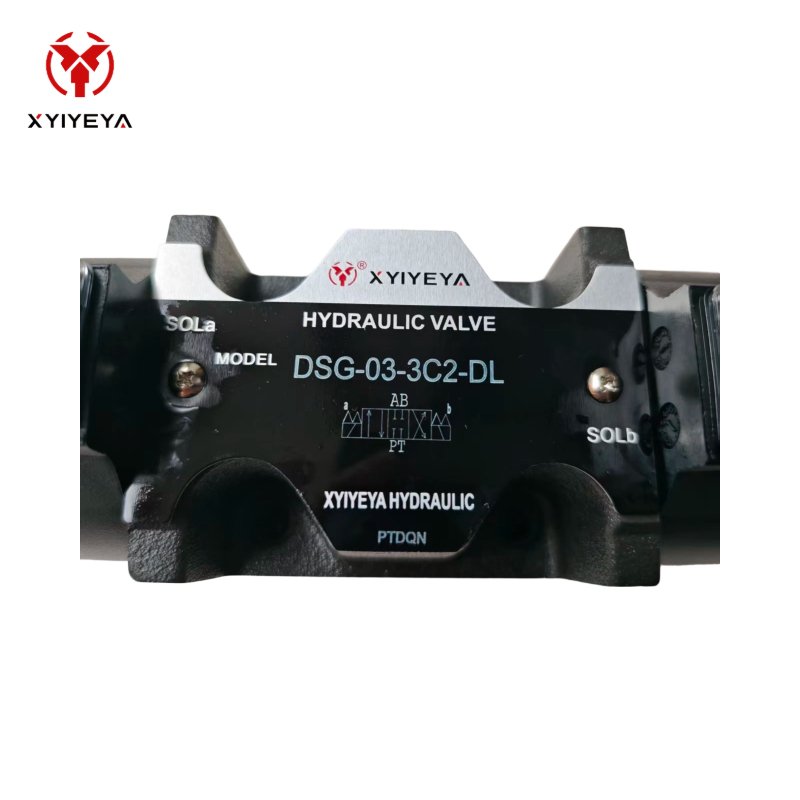

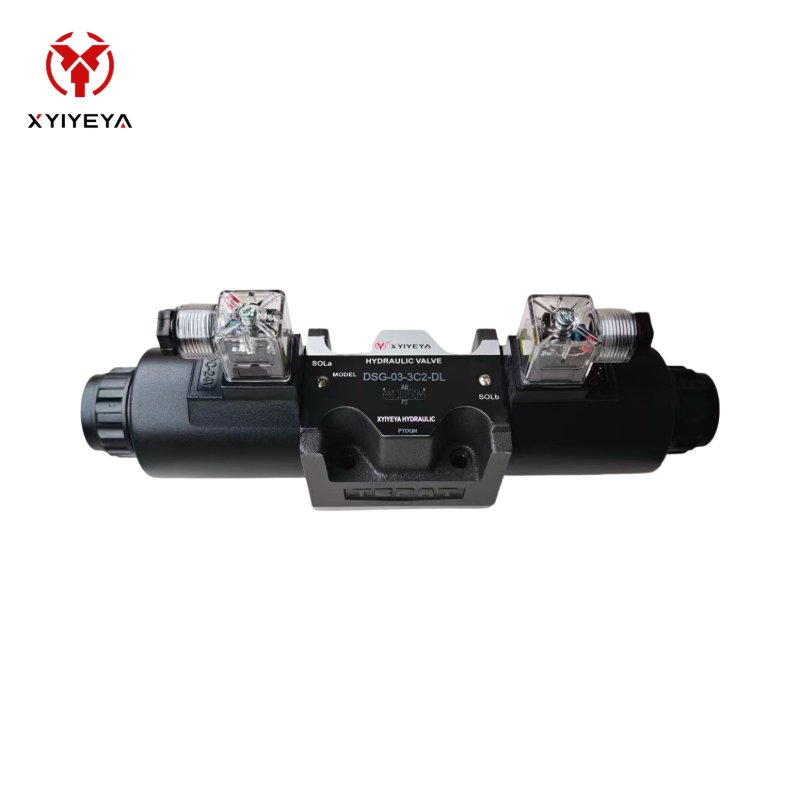

DSG-03 Hydraulic Solenoid Directional Valve
DSG-03 Hydraulic Solenoid Directional Valve is designed for reliable and precise hydraulic flow control. With a durable spool-type structure and stable solenoid operation, it helps control the start, stop, and flow direction of hydraulic oil, making it suitable for industrial machinery, hydraulic equipment, and automation systems.
| Model | Such as:DSG-03-3C2-D24-DL,DSG-03-3C4-D24-DL,DSG-03-3C6-D24-DL |
|---|---|
| Pressure | Up to 315 bar |
| Flow | Up to 60L/min |
| Voltage | DC 12V/24VIAC 110V/220V |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Technical Parameters | DSG-G02 | DSG-G03 |
| Model | DSG-G02 | DSG-G03 |
| Max. Operating Pressure | 31.5 MPa | 31.5 MPa |
| Max. Flow Rate | 63 L/min | 120 L/min |
| Max. T-Line Back Pressure | 14 MPa | 16 MPa |
| Max. Changeover Frequency | 300 cycles/min | 240 cycles/min |
| Net Weight – Single Coil | 1.3 kg | 4 kg |
| Net Weight – Double Coil | 1.6 kg | 5.6 kg |

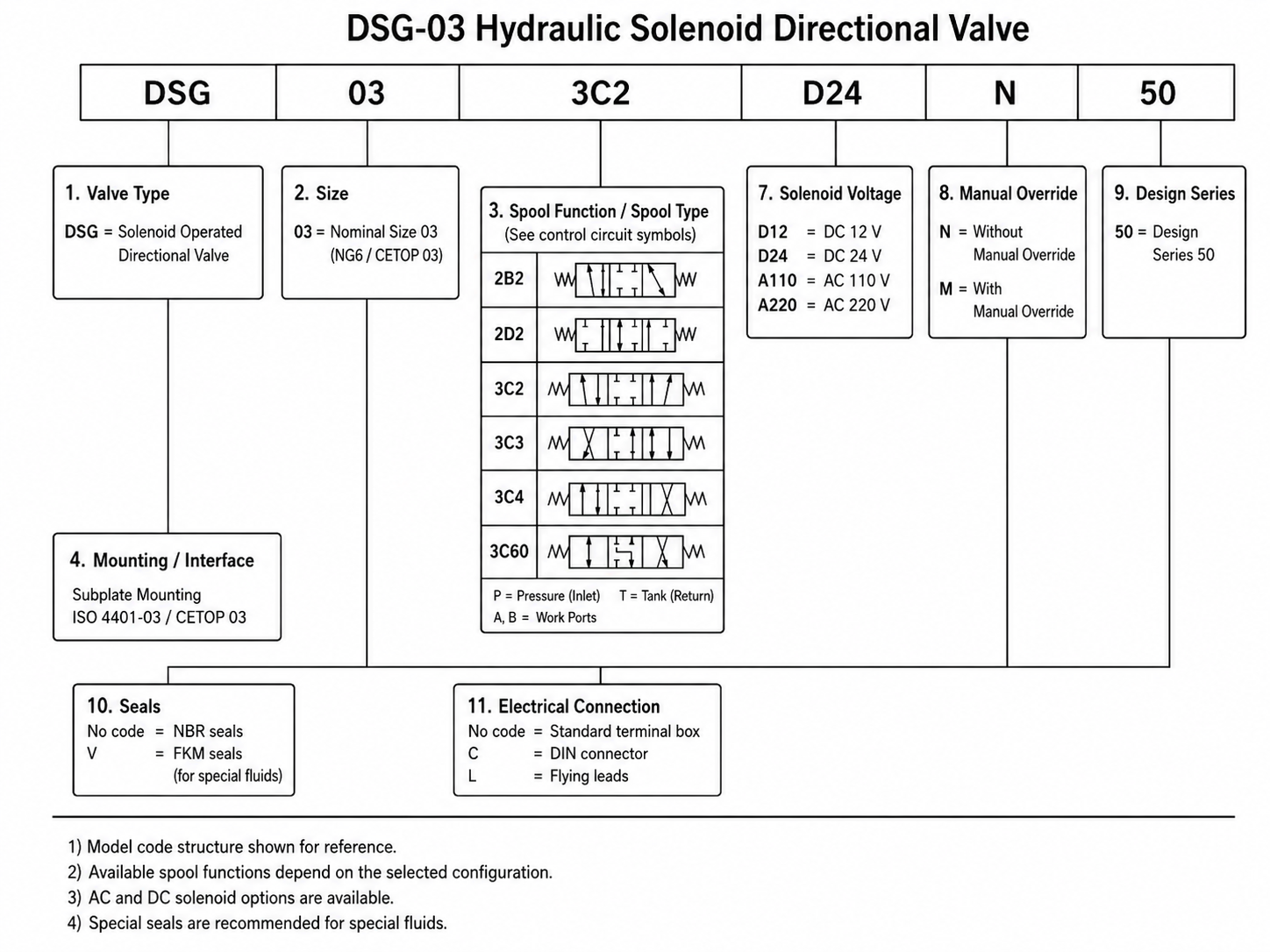

Model code
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
