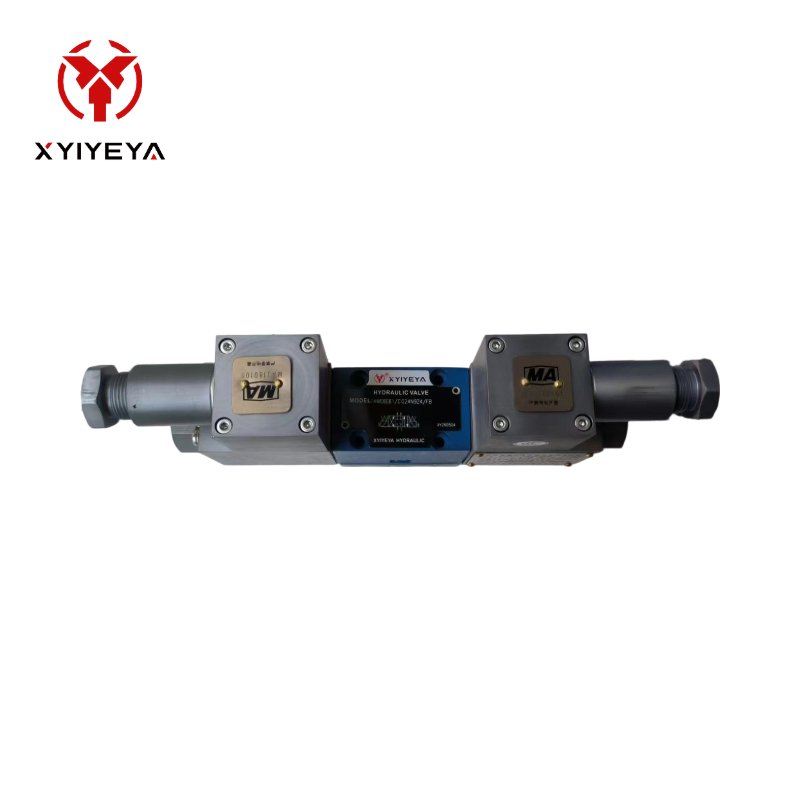

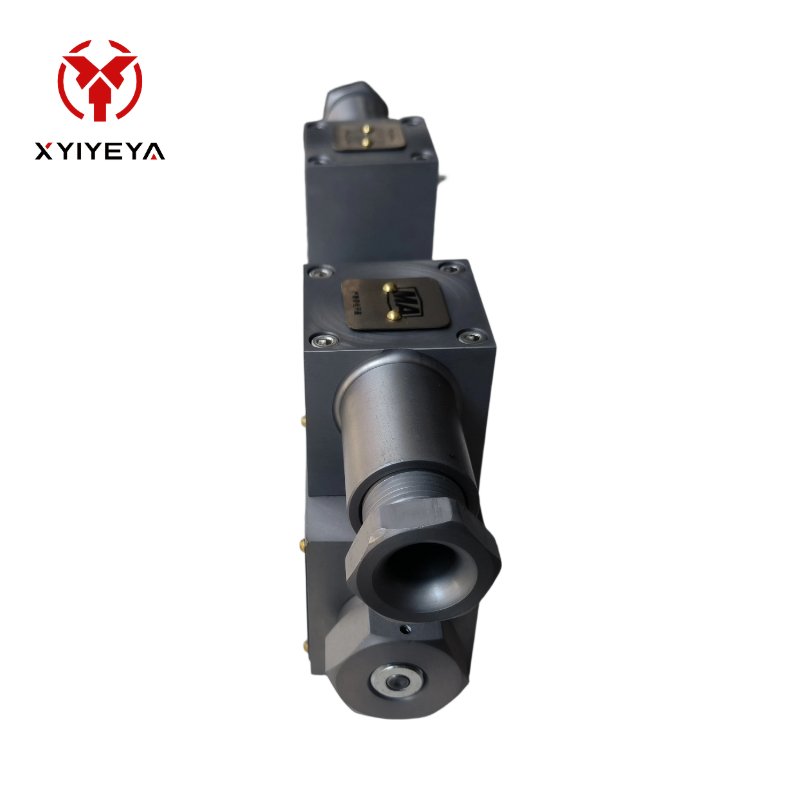

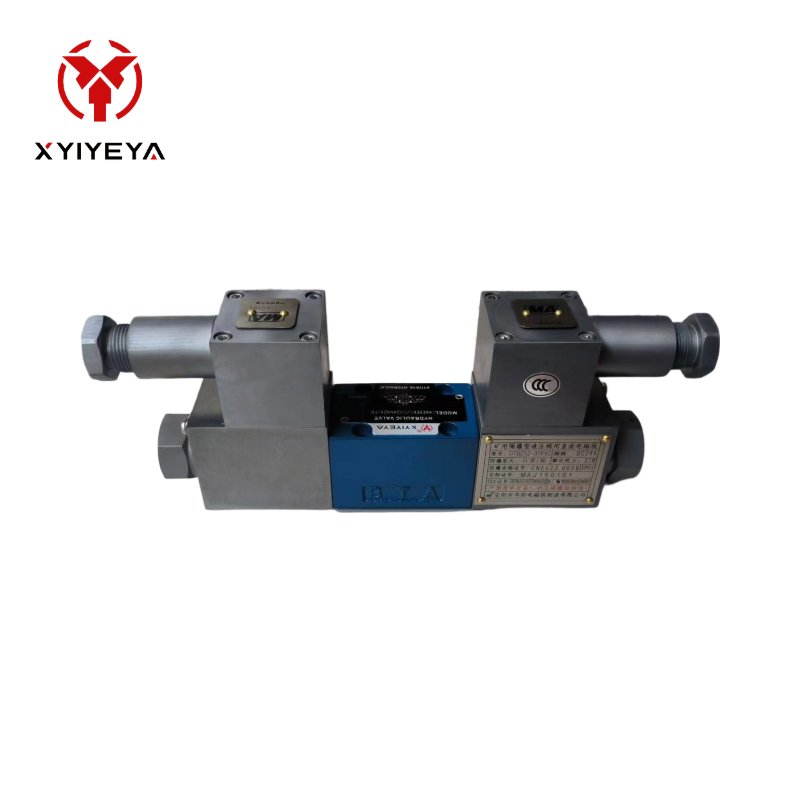

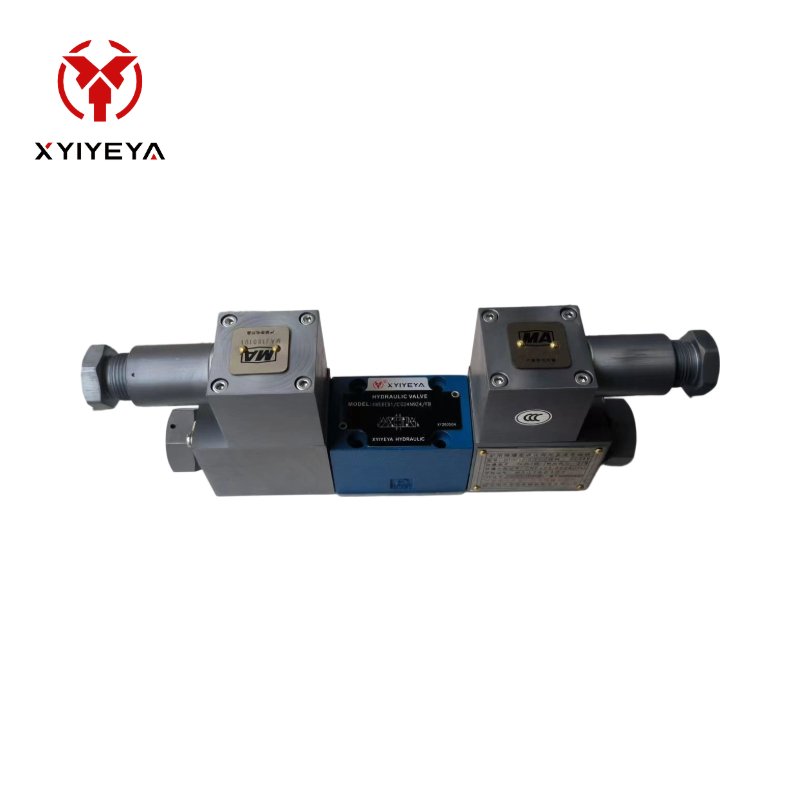

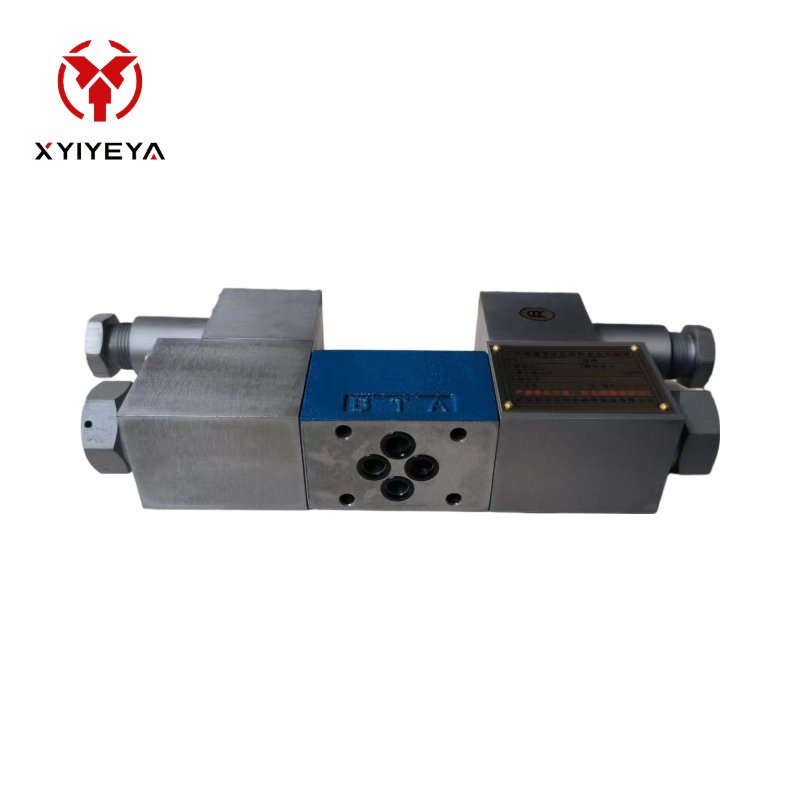

GD-WE6…61 Series Explosion-Proof Solenoid Directional Valve
The GD-WE6…61 Series Explosion-Proof Solenoid Directional Valve is designed for safe and reliable directional control in demanding hydraulic systems. It controls the start, stop and direction of oil flow, with stable shifting, quick response and durable performance. With an explosion-proof solenoid design, it is suitable for industrial equipment, construction machinery, mining, petrochemical, marine and other hydraulic applications. Multiple spool functions, voltages and connection options are available to meet different system requirements.

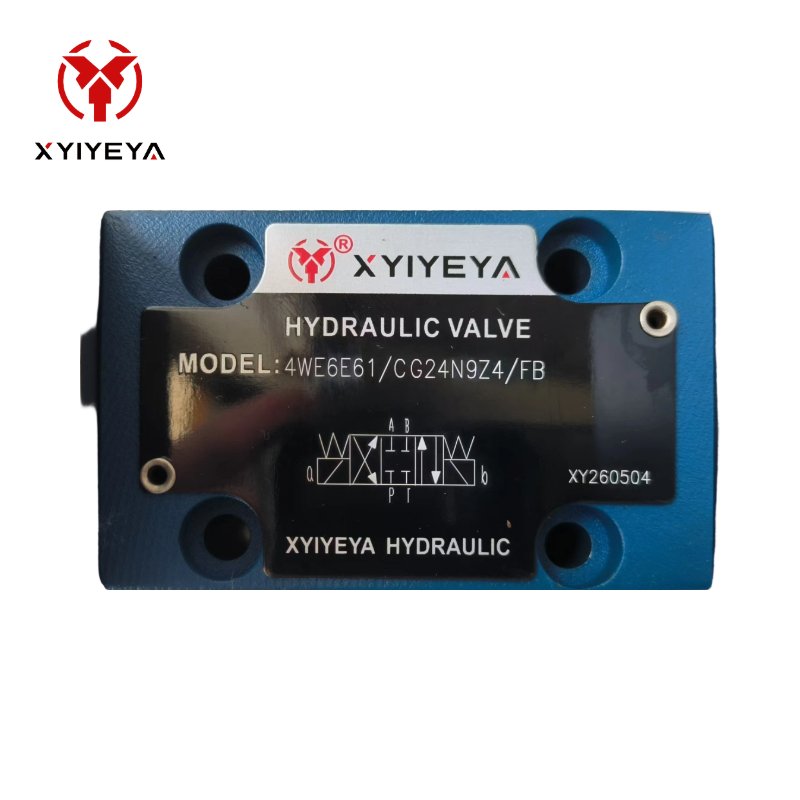

| Model | Such as : 4WE6E61/CG24N9Z4/FB , |
|---|---|
| Pressure | up to 35 MPa |
| Flow | up to 40 L/min |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Technical Parameters | ||
| Hydraulic | ||
| Maximum Operating Pressure |
Ports A,B,P MPa | 35 |
| Port T MPa | 21 When the operating pressure exceeds the allowable pressure,ports A and B must be connected to port T. |
|
| Maximum Flow L/min | 80 | |
| Effective Flow Area (Spool Position) |
Spool Code Q mm² | Approximately 6%of nominal flow area |
| Spool Code W mm² | Approximately 3%of nominal flow area | |
| Hydraulic Fluid | Compliant with DIN 51524 mineral oils (HL,HLP)¹;rapidly biodegradable pressure fluids VDMA 24568;HETG(rapeseed oil)¹ HEPG (polyglycols)²);HEES(synthetic ester)². |
|
| Fluid Temperature ℃ | -30 to+80(NBR seals) -15 to+80(FKM seals) |
|
| Viscosity Range mm²/s | 2.8 to 500 | |
| Fluid Cleanliness | Maximum permissible contamination level of thefluid in accordance with ISO440620/18/15. |
|
| 1)Suitable for NBR(nitrile rubber)and FKM(fluoro-rubber)seals. | ||
| 2)Suitable for FKM(fluoro-rubber)seals only. | ||
| 3)The cleanliness level must meet component requirements.Effective filtration prevents malfunctions and extends component service life. |
||

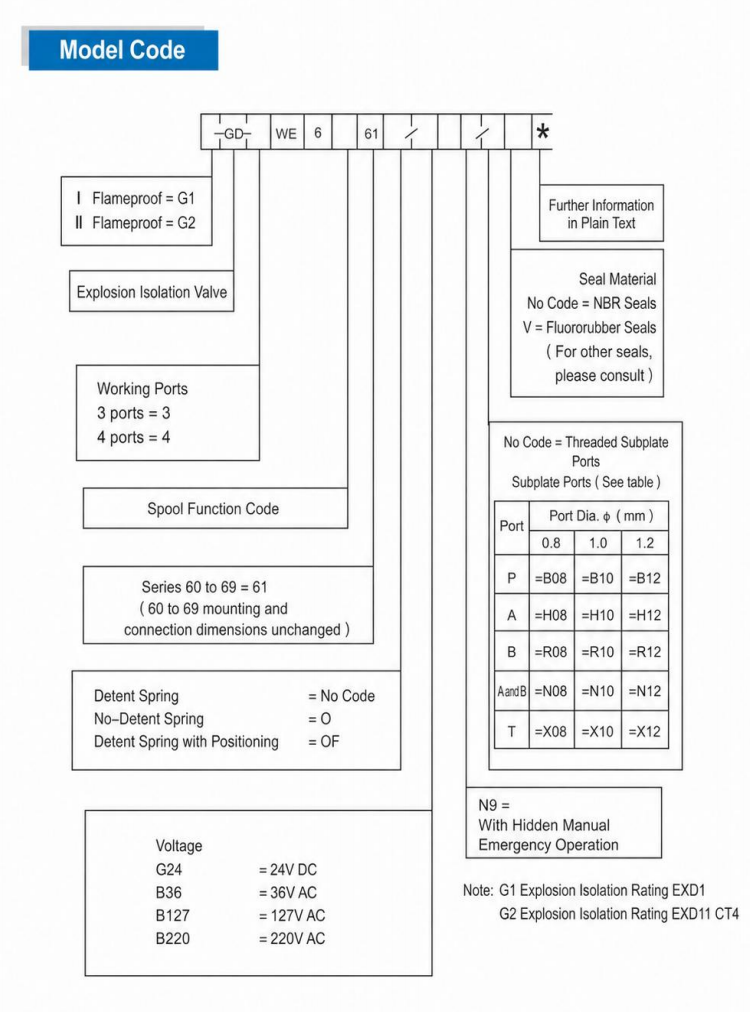

Model code

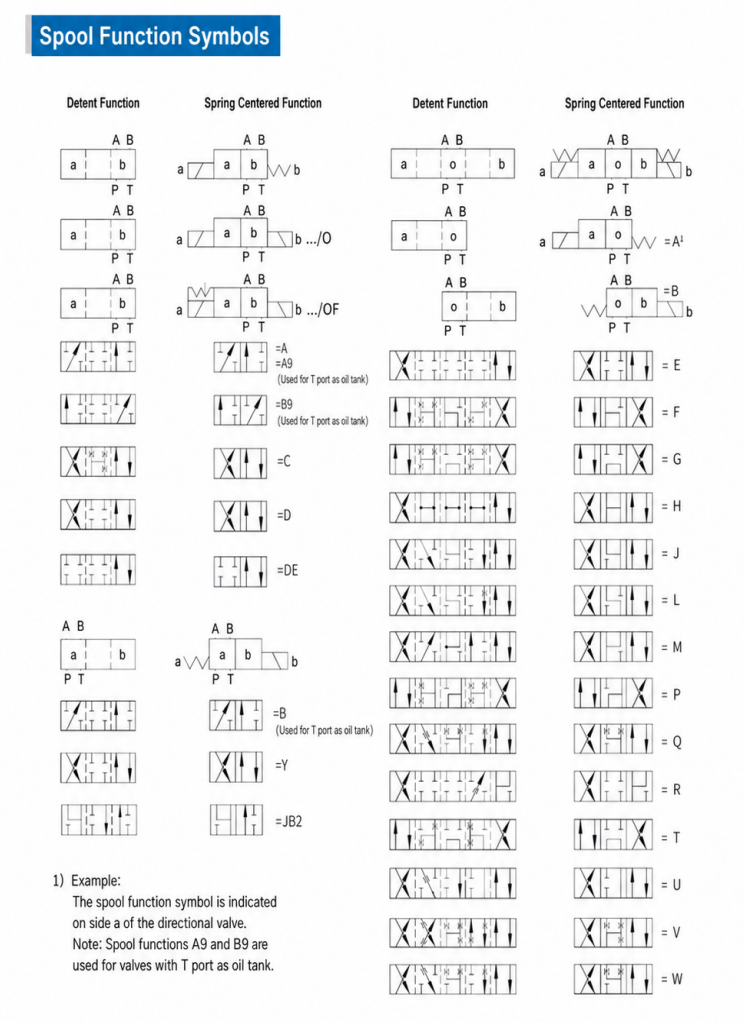

Function Symbols
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
