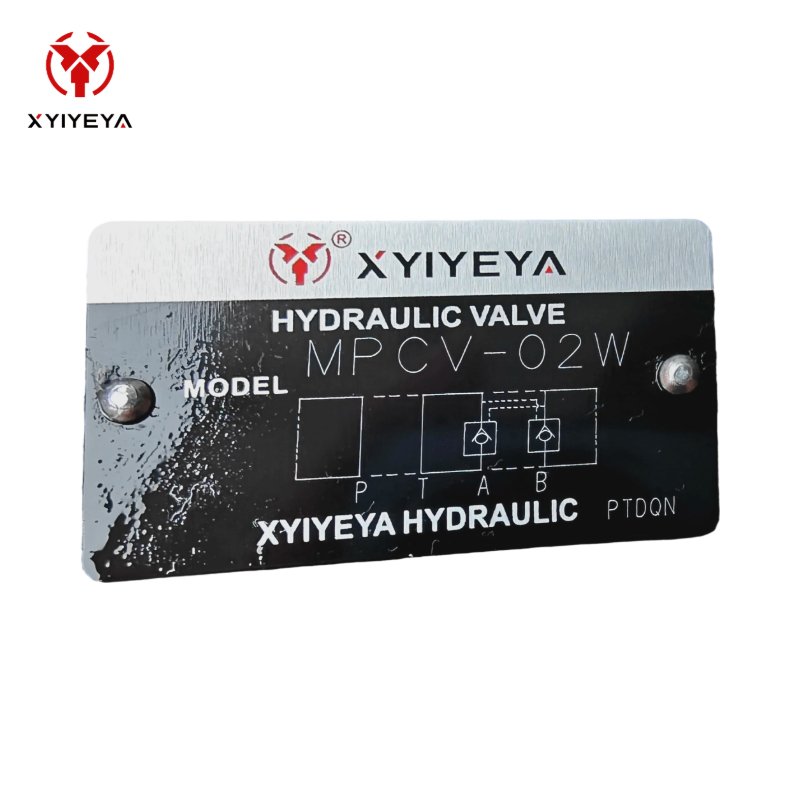

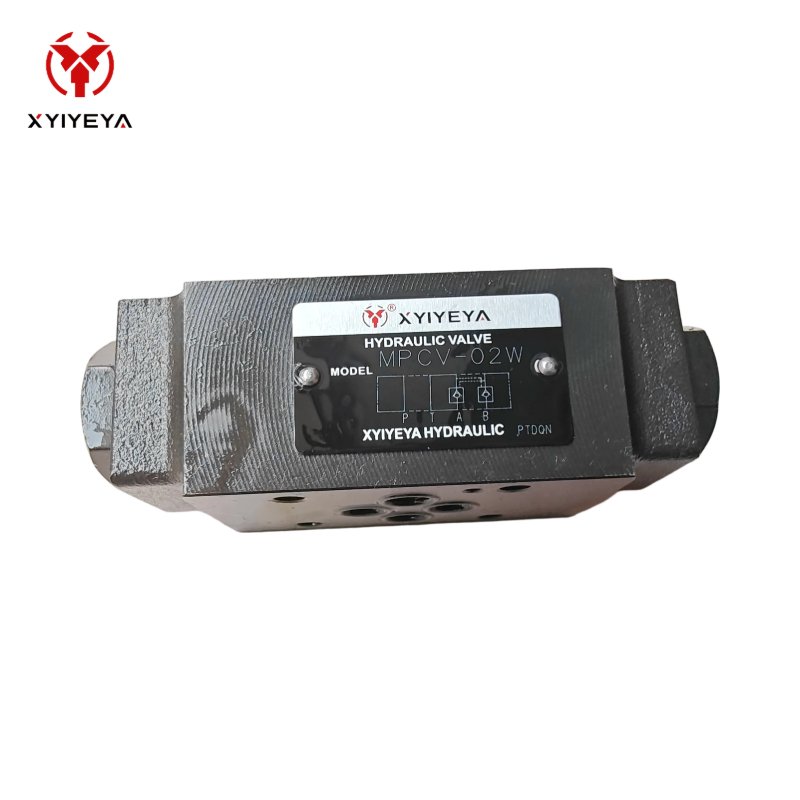

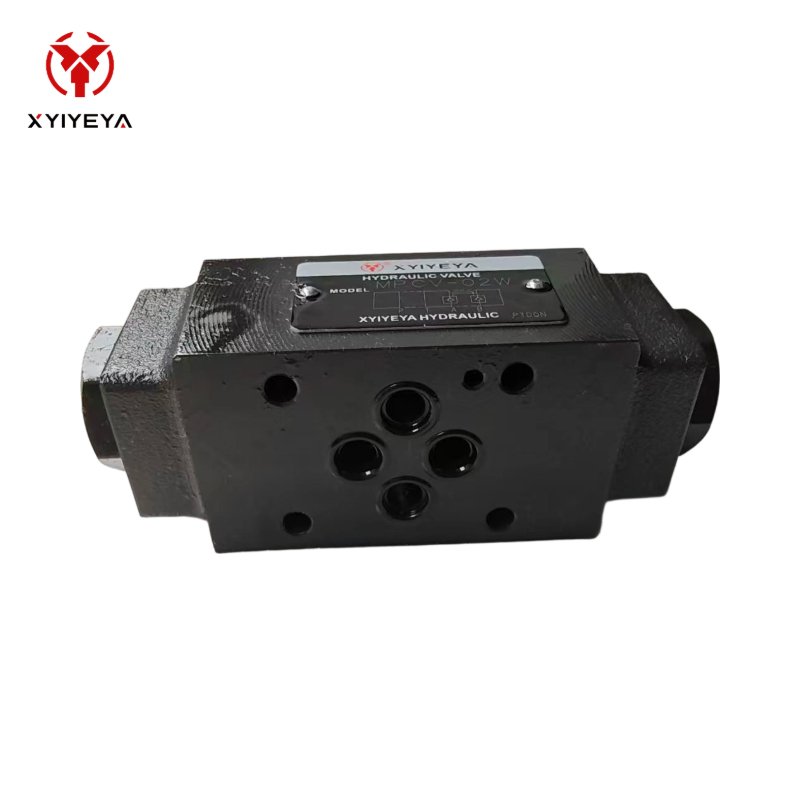

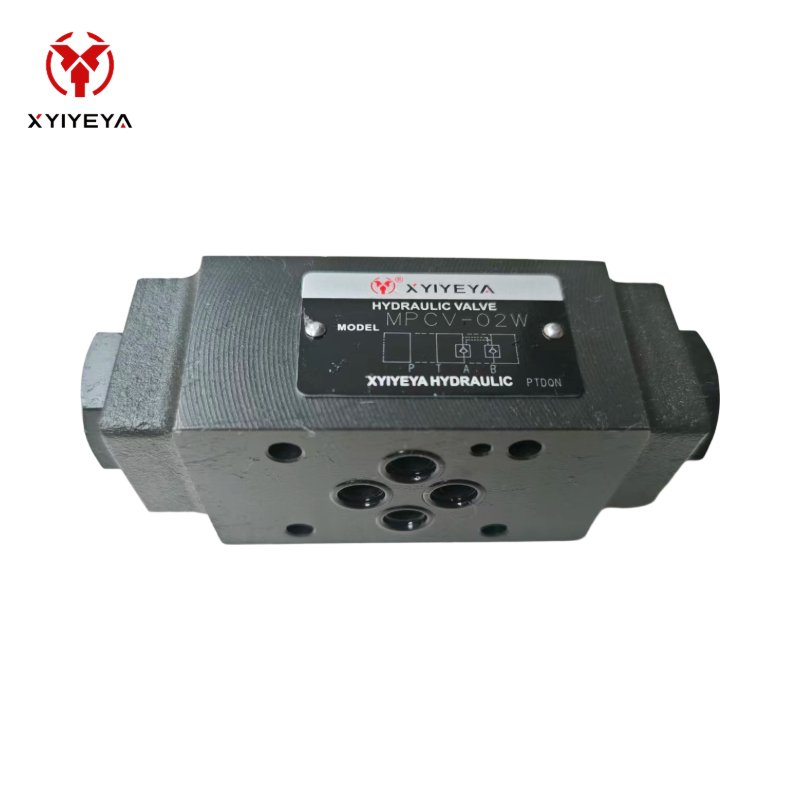

MPCV-02W Hydraulic Modular Pilot Operated Check Valve
MPCV-02W Modular Pilot Operated Check Valve is a modular hydraulic check valve designed for load holding, actuator locking, and preventing reverse oil flow in hydraulic systems. It is commonly used in hydraulic cylinders, lifting equipment, clamping circuits, and other double-acting hydraulic applications.
| Model | MPCV-02W |
|---|---|
| Pressure | Up to 31.5 MPa |
| Flow | Up to 35 L/min |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Model | Max Pressure (kgf/cm²) | Pressure Range (kgf/cm²) | Max Flow (L/min) |
| MPCV-02-* | 250 | 1: 8–70 / 2: 10–140 / 3: 10–210 | 35 |
| MPCV-03-* | 250 | 1: 8–70 / 2: 10–140 / 3: 10–210 | 70 |
| MPCV-04-* | 250 | 1: 8–70 / 2: 10–140 / 3: 10–210 | 180 |
| MPCV-06-* | 250 | 1: 8–70 / 2: 10–140 / 3: 10–210 | 280 |

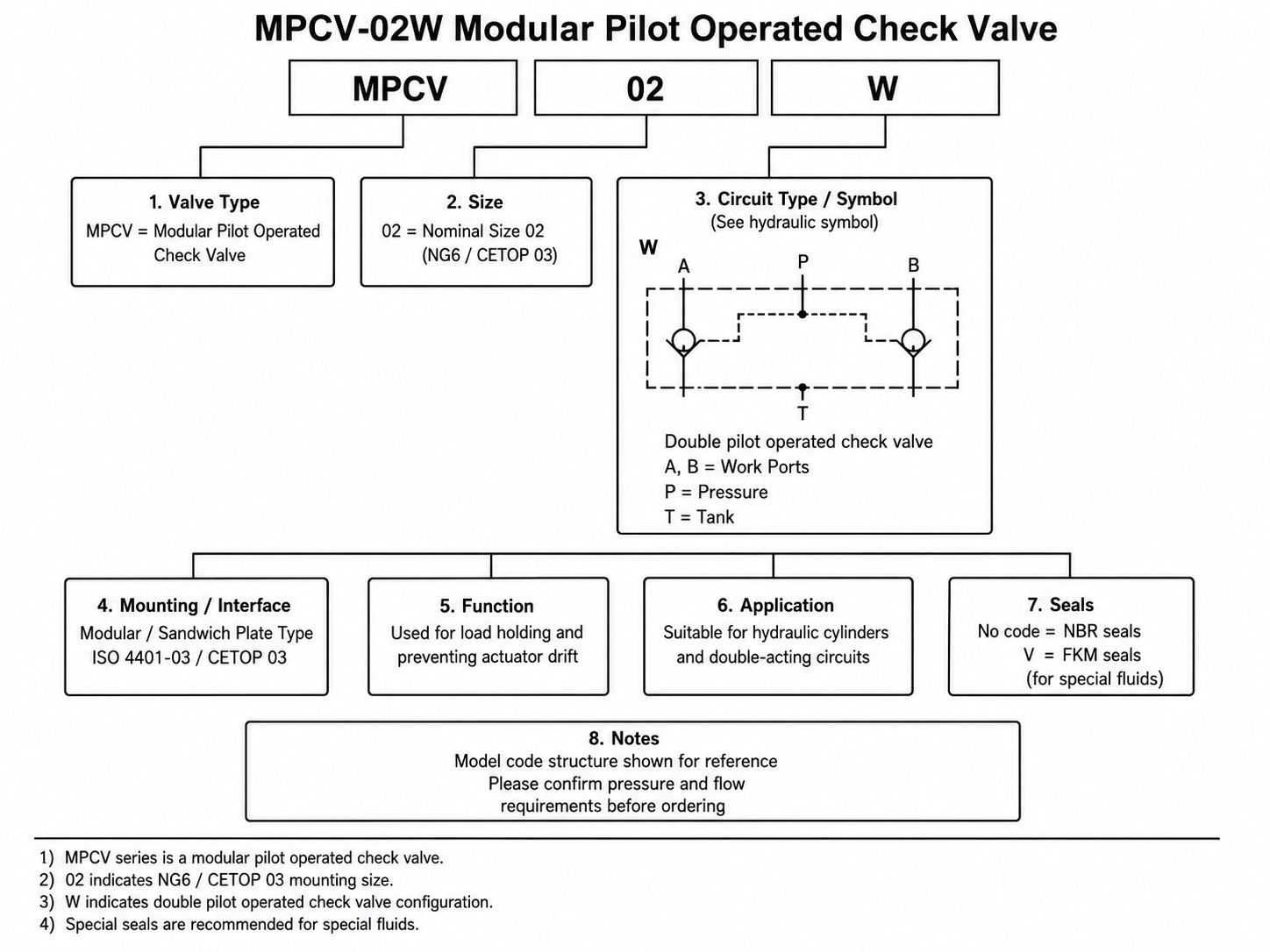

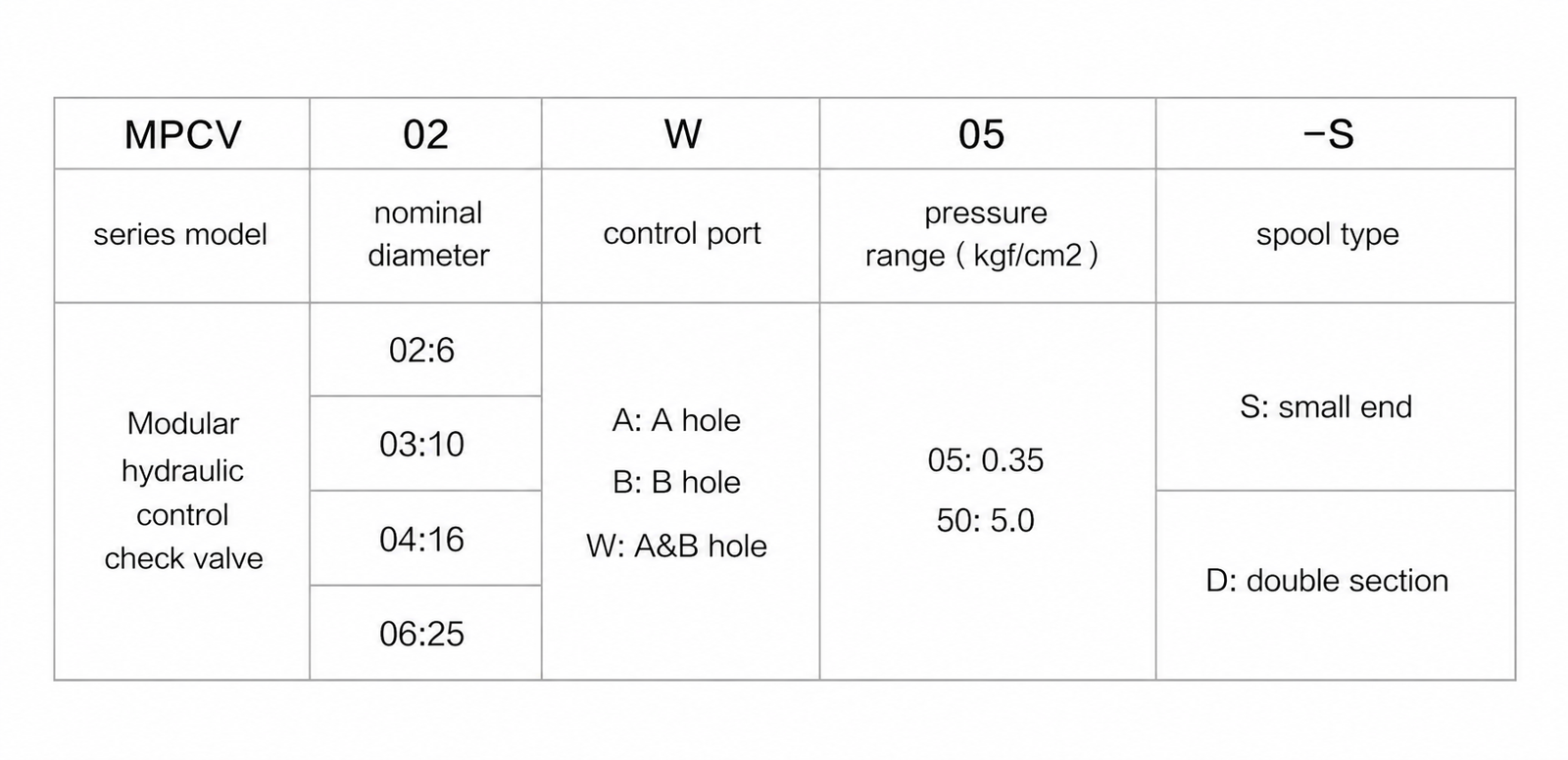

Model code
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
