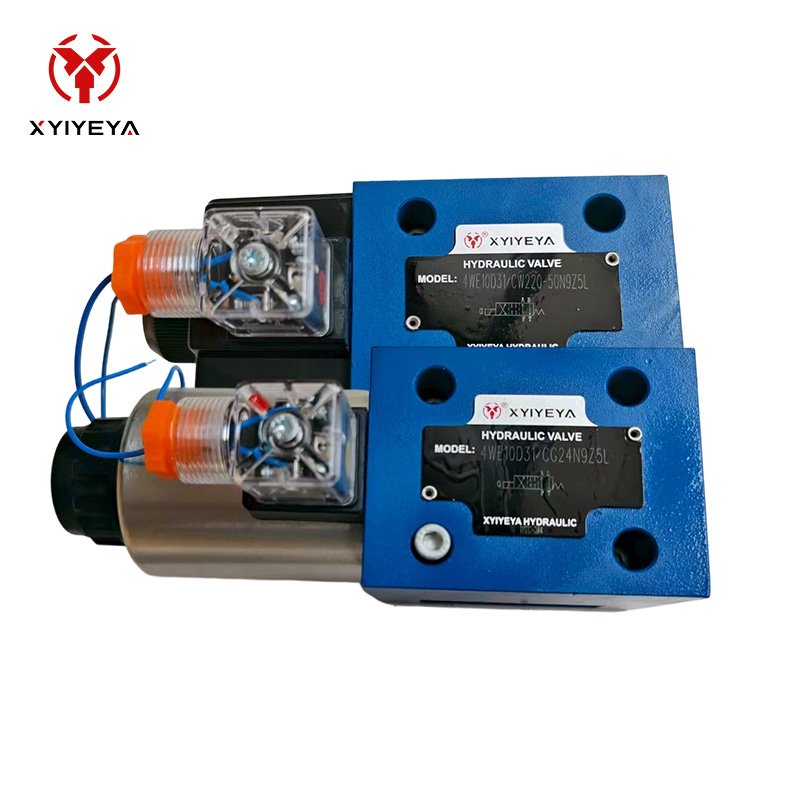

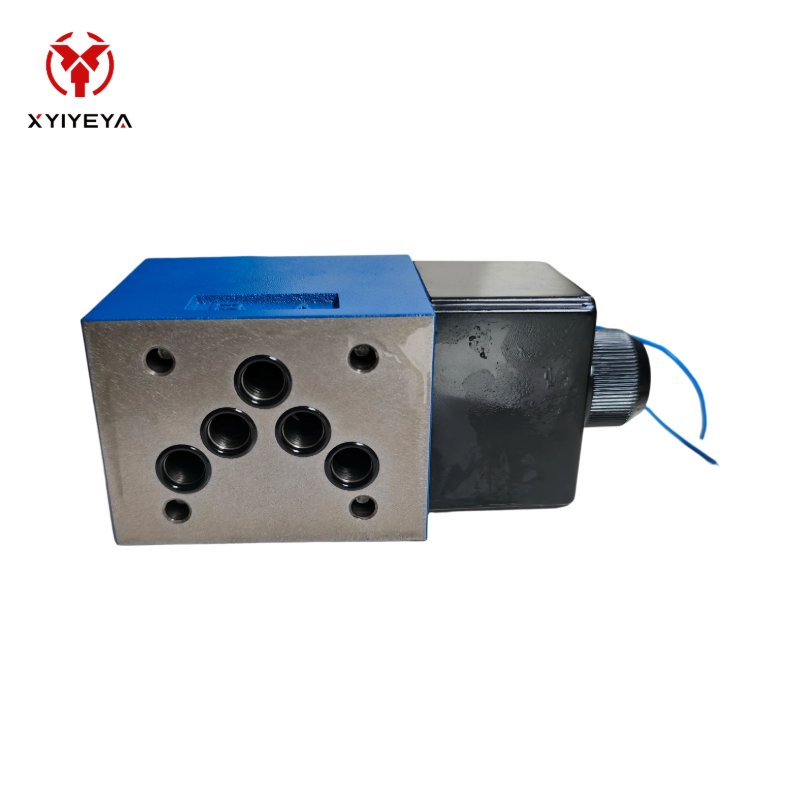

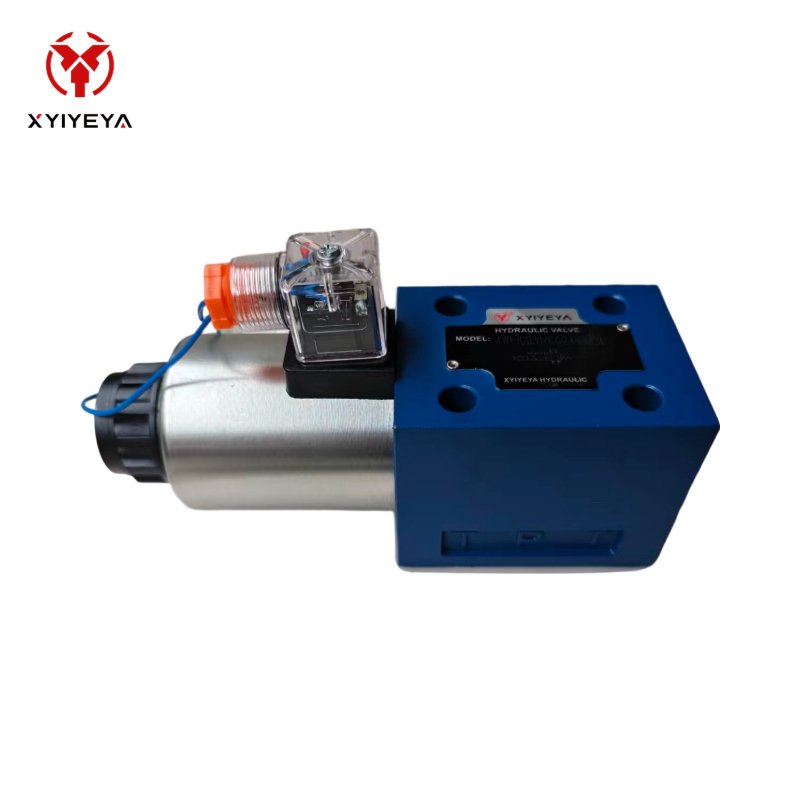

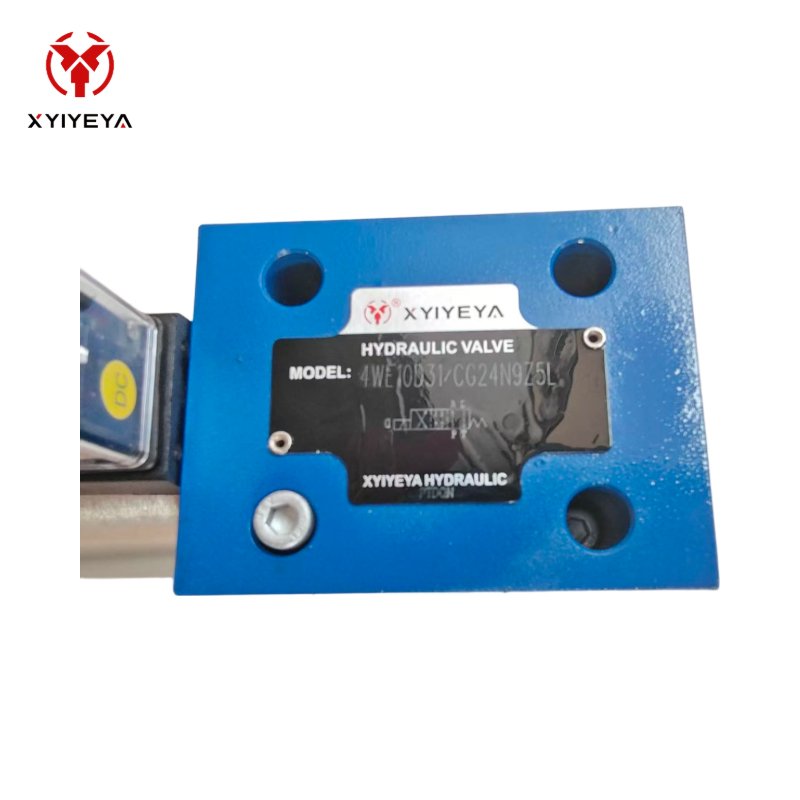

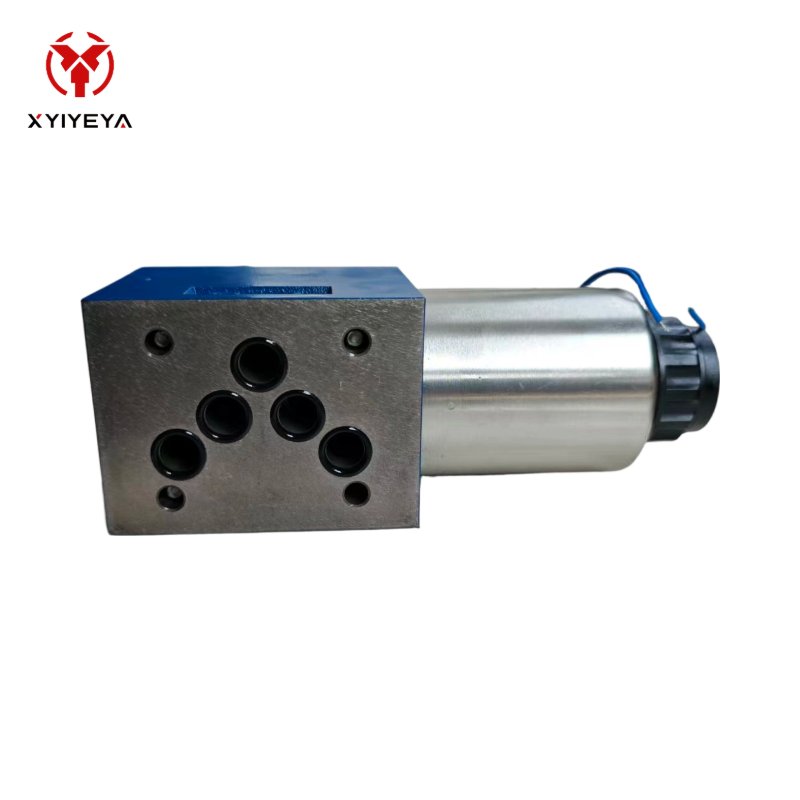

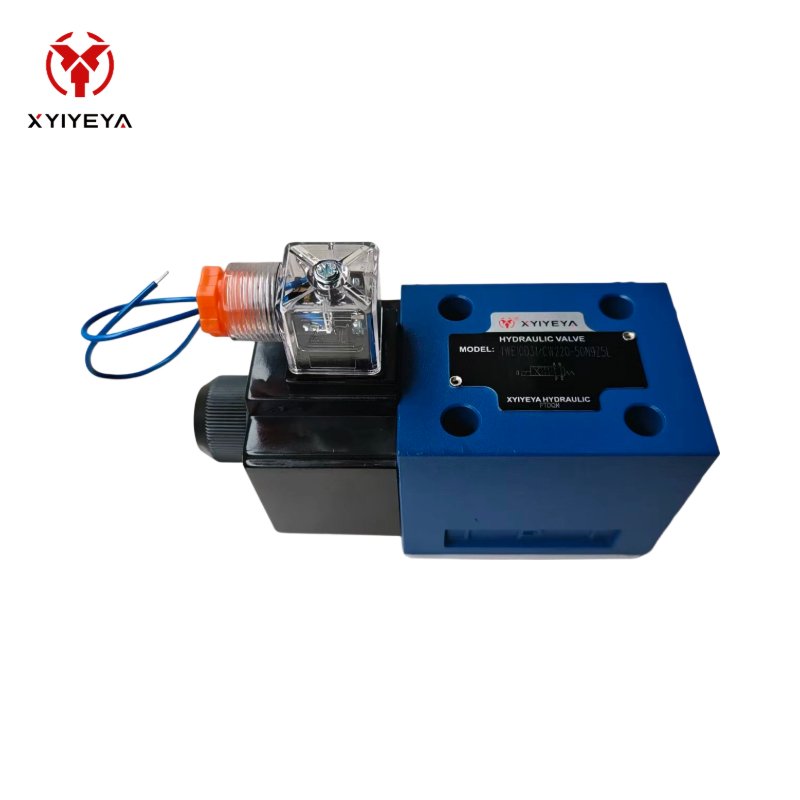

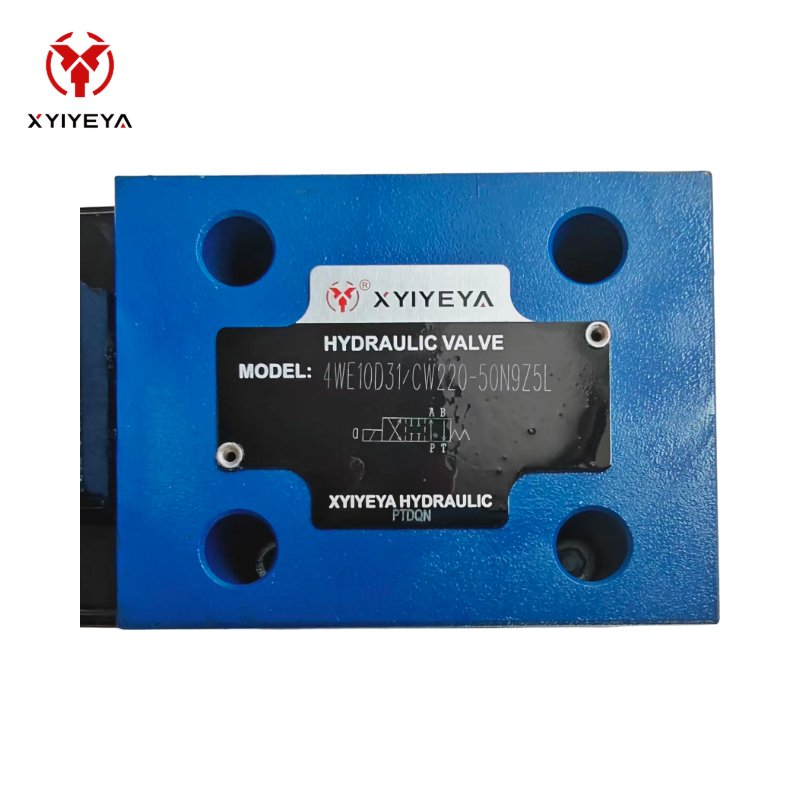

WE10…31 Series Hydraulic Solenoid Directional Control Valve
WE10…31 Series Hydraulic Solenoid Directional Control Valve is designed for reliable hydraulic flow control. With a durable spool-type structure and stable solenoid operation, it is widely used to control the start, stop, and direction of hydraulic oil flow in various industrial and mobile hydraulic systems.
| Model | such as 4WE10E31/CG24N9Z5L,4WE10E31/CW220-50N9Z5L,4WE10H31/CG24N9Z5L,4WE10H31/CW220-50N9Z5L |
|---|---|
| Pressure | up to 35 |
| Flow | 150 |
| Fluid | -30 to+80(NBR seals)°C |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Technical Data | |||
| Operating pressure(MPa) | up to 35 | ||
| Ports A,B,P;port T | up to 21 | ||
| Flow rate | L/min | 150 | |
| Flow cross-section | in center position | Q spool:6%of rated area;W spool:3%of rated area | |
| Pressure fluid | Mineral oil(HL,HLP)to DIN 51524;rapidly biodegradable pressure fluids to VDMA 24568;HETG(rapeseed oil)¹;HEPG(polyglycols)²; HEES(synthetic esters)² |
||
| Fuid temperature range | ℃ | -30 to+80(NBR seals);-20 to +80(FKM seals) | |
| Viscosity range | mm²/s | 2.8 to 500 | |
| Weight(kg) | Single solenoid | 5.1 DC;4.3 AC | |
| Double solenoid | 6.7 DC;5.1 AC | ||
| 1)Suitable for NBR and FKM seals 2)Only for FKM seals | |||
| Note;For spool types A and B,if operating pressure exceeds the permissible pressure at port T, port T must be used as the drain port. |
|||
| 1)Suitable for NBR and FKM seals 2)Only for FKM seals | |||
| Note;For spool types A and B,if operating pressure exceeds the permissible pressure at port T, port T must be used as the drain port. |

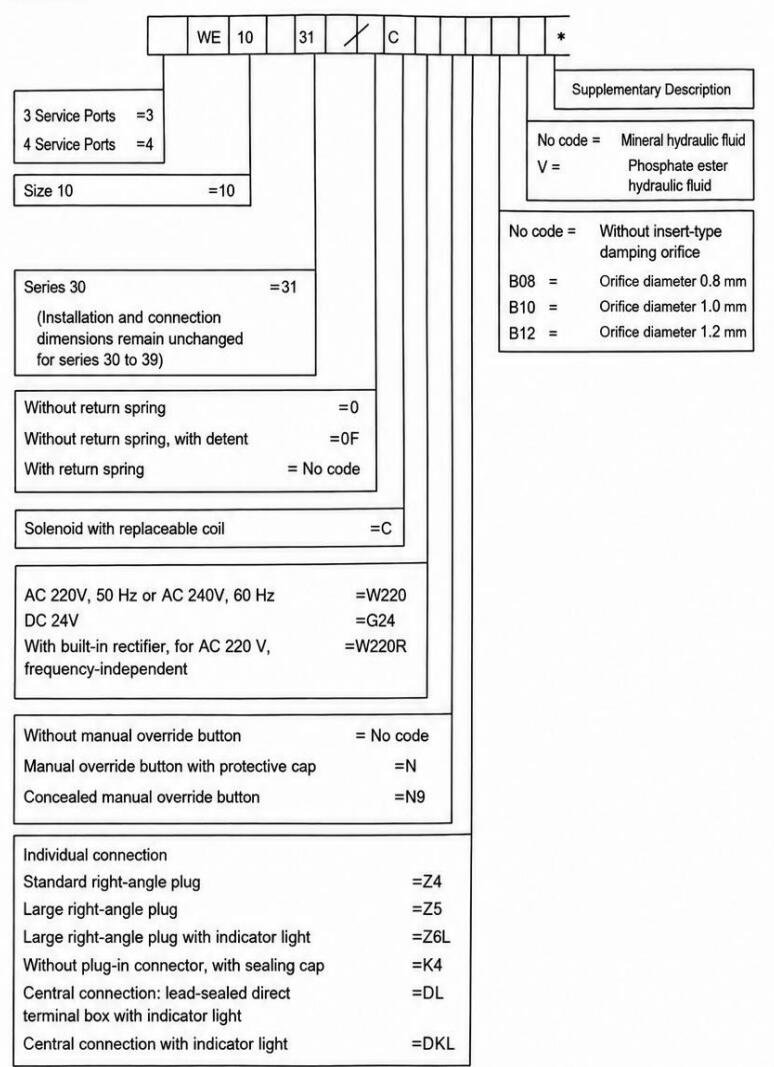

Model code
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
