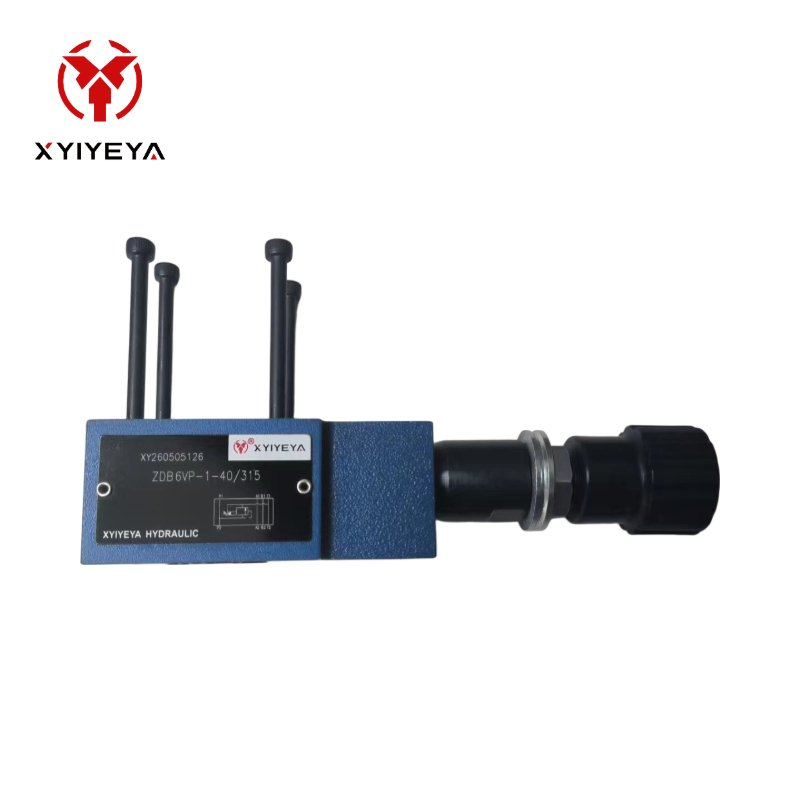

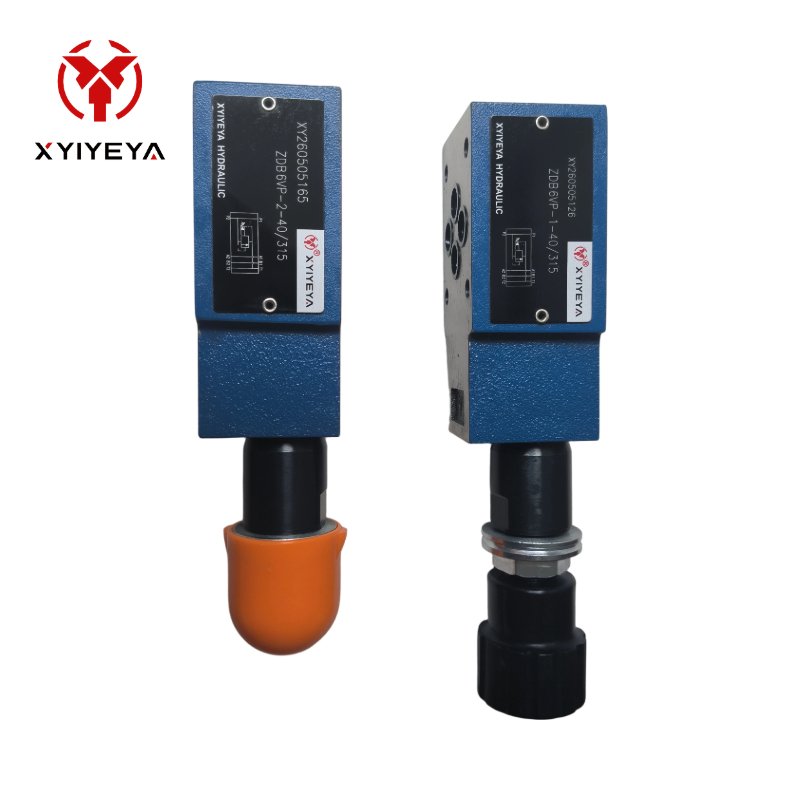

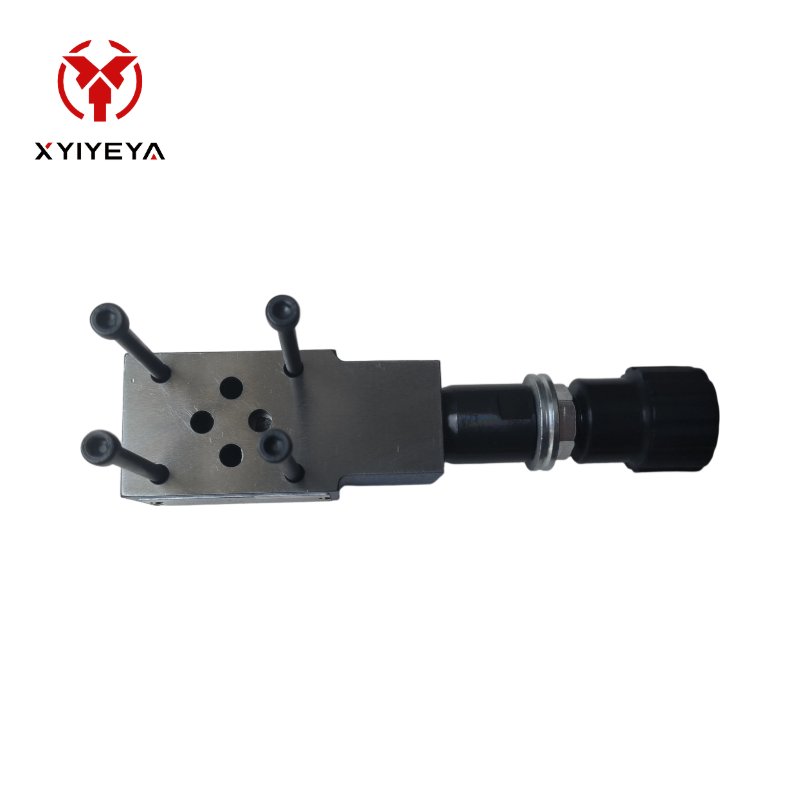

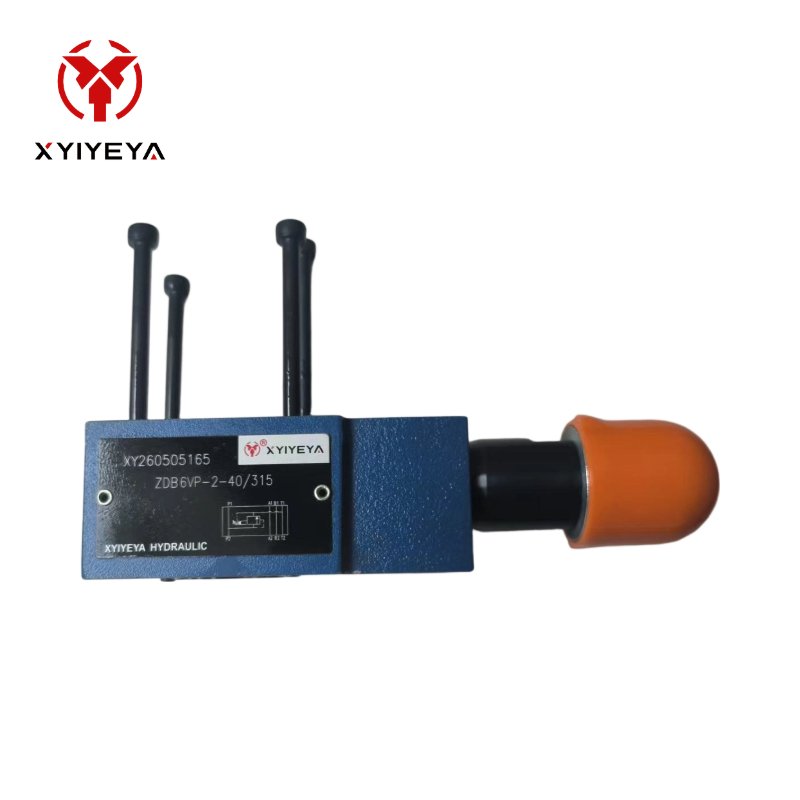

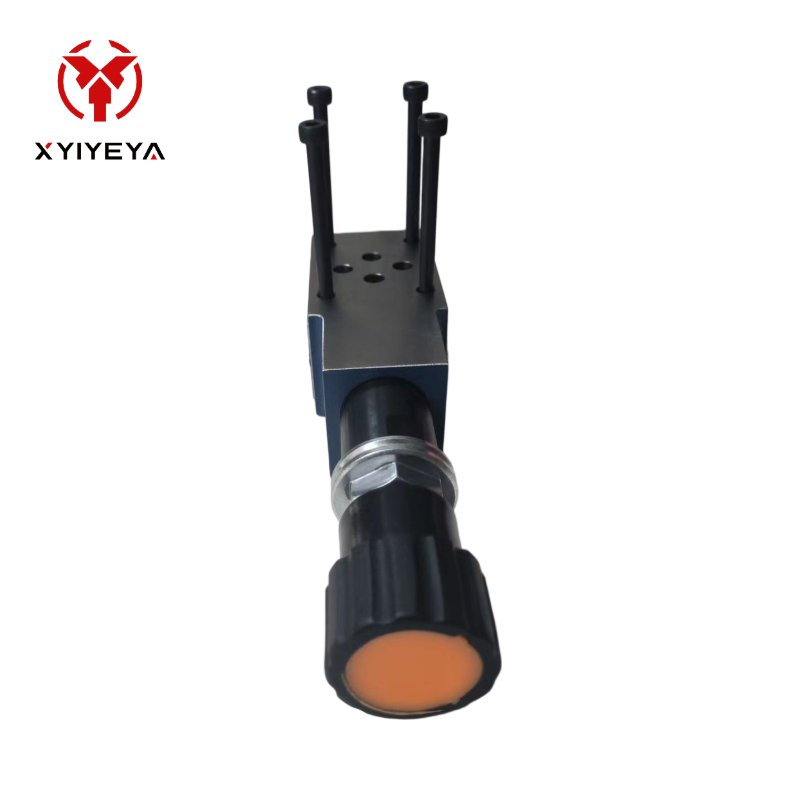

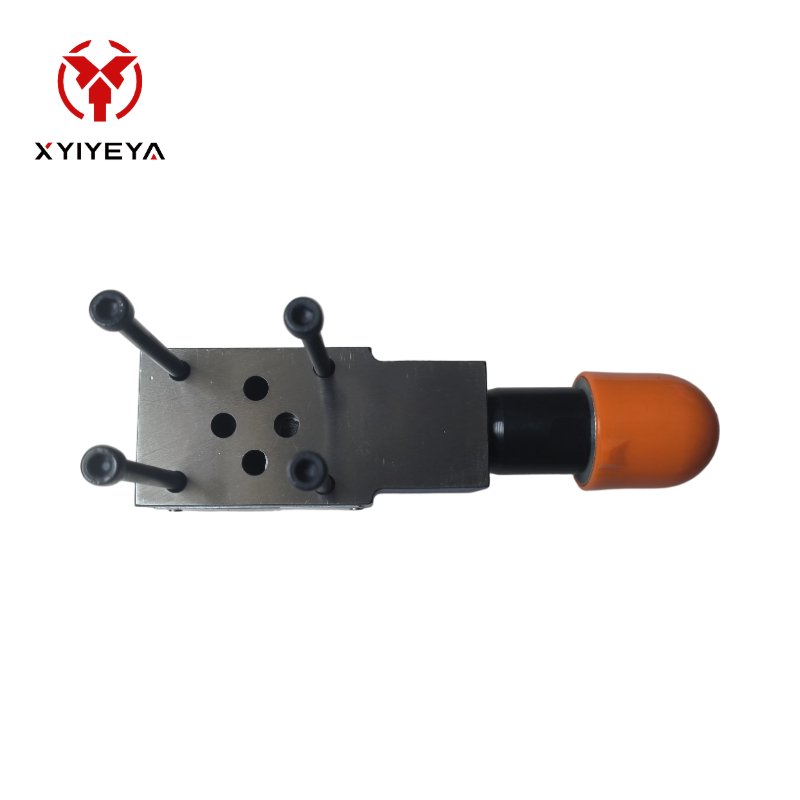

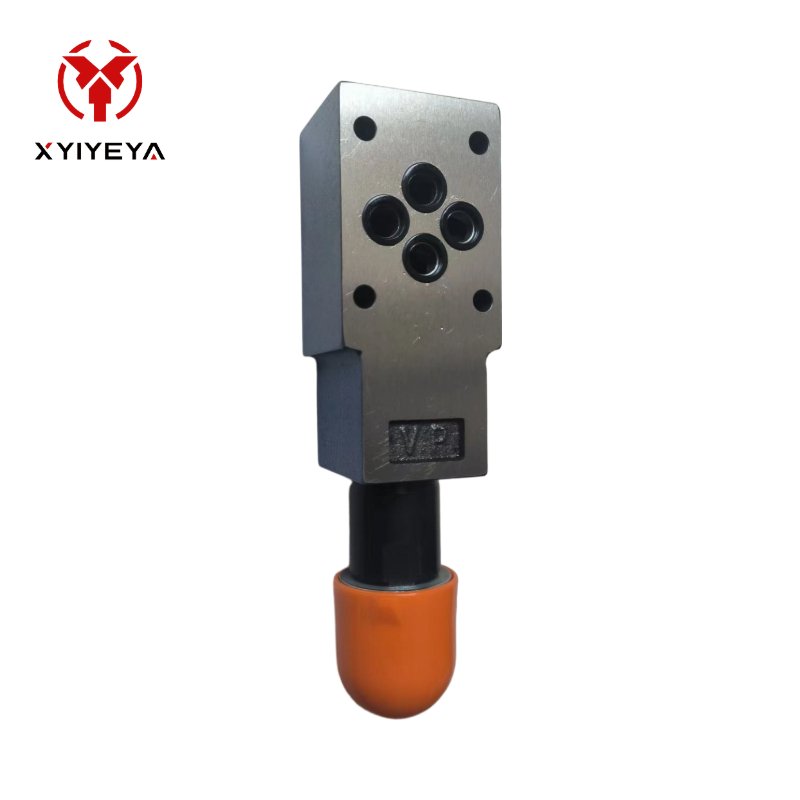

ZDB6/Z2DB6 Sandwich Plate Relief Valve
ZDB6/Z2DB6 Sandwich Plate Relief Valve is a high-performance hydraulic valve designed to protect systems from overpressure, featuring a compact sandwich plate design for reliable pressure relief and precise control in industrial and mobile hydraulic applications.
| Model | Such as:ZDB6VP-1-40/100,ZDB6VP-1-40/50,ZDB10VP-2-40/315,ZDB10VP-2-40/200 |
|---|---|
| Pressure | Up to 31.5 |
| Flow | Up to 60 L/min |
| Fluid | Mineral hydraulic oil or phosphate ester hydraulic oil |
| Material | High-strength Steel |
PRODUCT DETAILS
Parameter
| Technical Specifications | ||
| Pressure Fluid | Mineral hydraulic oil or phosphate ester hydraulic oil | |
| Temperature Range (℃) | —30~+80 | |
| Viscosity Range (mm²/s) | 10～800 | |
| Fluid Cleanliness | Maximum permissible contamination level according to NAS 1638,Class 9;therefore, we recommend a filter with a minimum filtration rating of β10≥75 |
|
| Max.Operating Pressure (MPa) | Up to 31.5 | |
| Pressure Setting (MPa) | Up to 5,10,20,31.5 | |
| Max.Flow (L/min) | Up to 60 | |
| Weight(kg) | Type ZDB 6 | Approx.1 |
| Type Z2DB 6 | Approx.1.2 | |

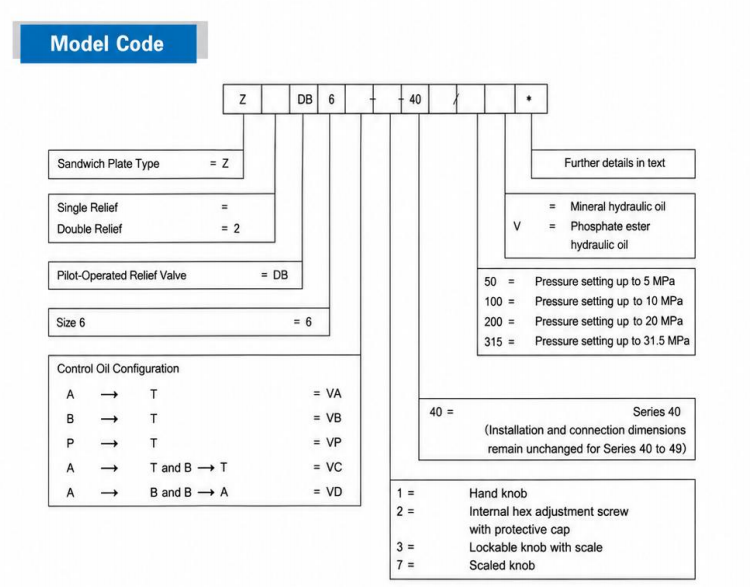

Model code

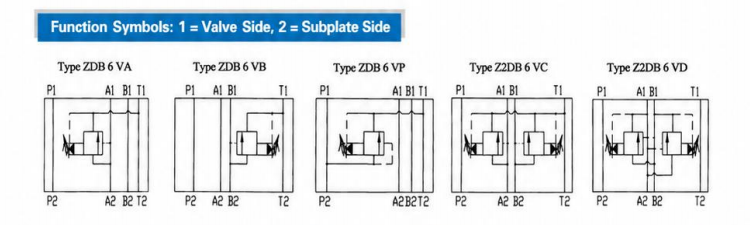

Function Symbols
If you are still unsure about which model to choose, please feel free to contact us. We will provide you with professional advice and guidance!
